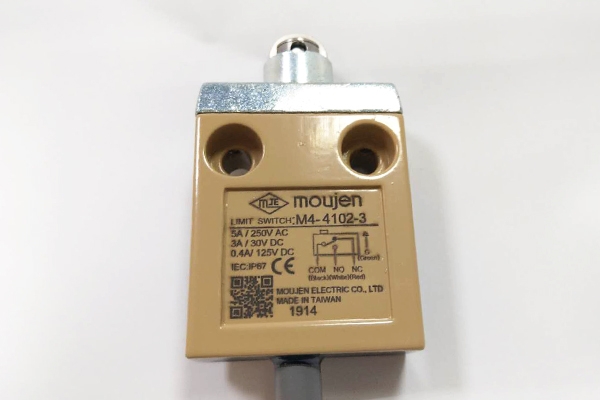

M4-封闭式限位开关

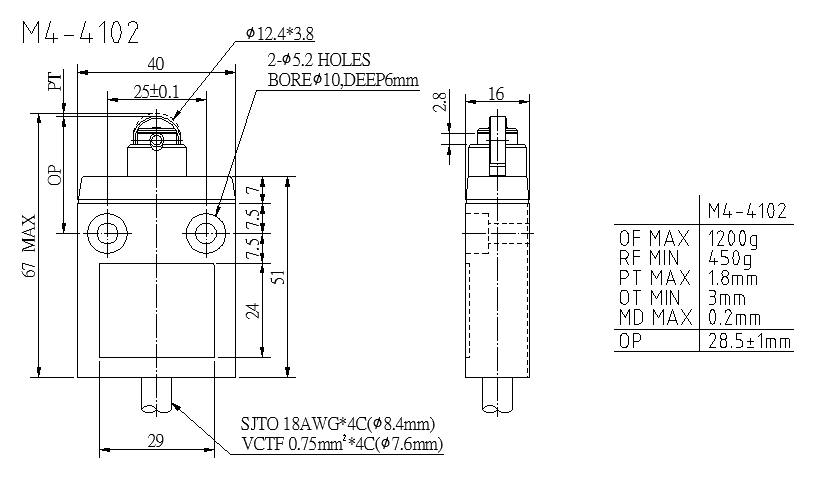

M4-4102-3
RMB 385.66

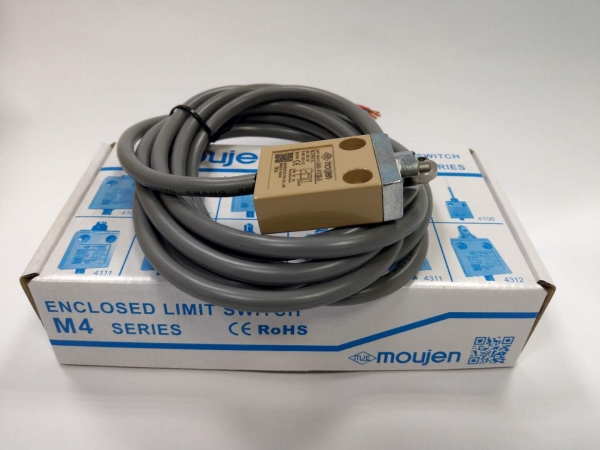

金屬滾輪,非UL線3米長
◆ 功能
1.&n
Features/功能
- Miniature Size & Positive opening contact switch inserted for option. / 小型设计种类齐全与强制脱离安全开关可供选择
- Wide range of choices.
- Protective grade conforms to IP 67. / 防油;防水程度佳,符合IP67
- With 2m or 3m cable.(VCTF or SJTO cable). / 标凖品付2m或3m电缆线(VCTF或SJTC电缆)
- SJTO cable (UL approved)Oil resistance cord type. / SJTO电缆线为UL认证之耐油缆线
- Standard type, Side out cable type,Quick connect type.(M12 x 1) / 标凖型,侧出线型,快速连结型(M12 x 1)
- 额定
|
5A |
125 or 250V AC |
|
3A |
30V DC |
|
0.4A |
125V DC |
- 特性
|
操作速度 |
0.1mm ～0.5m/sec, M4-4104(4114)→1mm～1m/s |
|
操作温度 |
-10° ～ + 70℃(without freezing) |
|
湿度 |
95% RH Max |
|
操作频度 |
Mechanically: 120 operations/min. Electrically: 30 operations/min. |
|
接触电阻 |
300m Ω max.(initial) (with 3m cable) |
|
绝缘电阻 |
100M Ω min. ( 500V DC) |
|
耐电压 |
between non-continuous terminals: 1000 V AC 50/60 Hz 1 minute. between each terminal and non-current-carrying metal part and between each terminal ground: 1500V AC 50/60 Hz 1 minute |
|
振动 |
Malfunction durability: 10 ～ 50Hz ﹔1.5mm double amplitude |
|
冲击 |
Mechanical durability:1000m/sec2(approx. 100G) Mechanical durability: 300m/sec2(approx. 30 G) |
|
使用寿命 |
Mechanically: 2,000,000 operations min.(standard) 500,000 operations min. Electrically: 200,000 operations min. (1.5A,110VAC) MAX |
|
保护等级 |
IEC: IP67 |
|
|
|
- 电缆规格
VCTF Cable (0.75mm2×4c)
SJTO Cable (UL approved) (18WG×4c)
- 若欲订购特殊型号,请e-mail:3505842271@qq.com洽询
或加QQ3505842271与我连络询价
