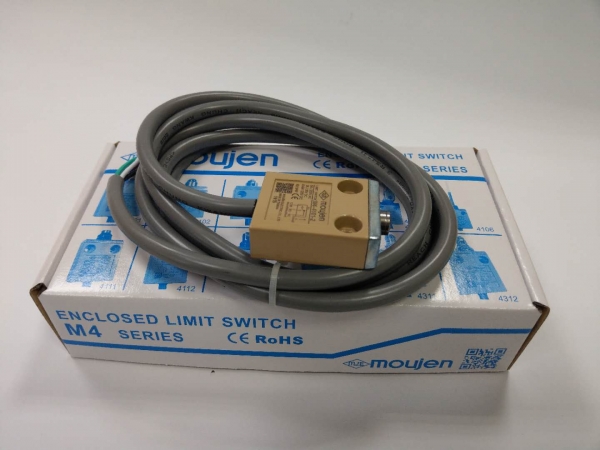

M4-封闭式限位开关

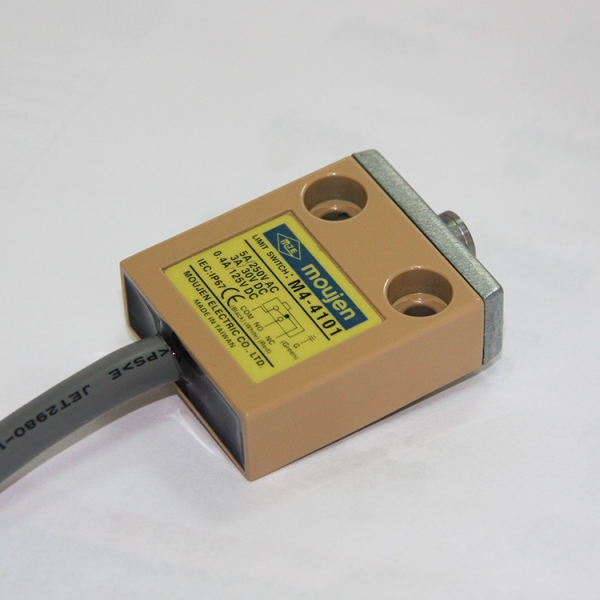

M4-4101-2
RMB 342.66
直壓短棒,非UL線2米長
◆ 功能
1.
short actuator limit switch with 2 meters cable
Features/功能
- Miniature Size & Positive opening contact switch inserted for option. / 小型设计种类齐全与强制脱离安全开关可供选择
- Wide range of choices.
- Protective grade conforms to IP 67. / 防油;防水程度佳,符合IP67
- With 2m or 3m cable.(VCTF or SJTO cable). / 标凖品付2m或3m电缆线(VCTF或SJTC电缆)
- SJTO cable (UL approved)Oil resistance cord type. / SJTO电缆线为UL认证之耐油缆线
- Standard type, Side out cable type,Quick connect type.(M12 x 1) / 标凖型,侧出线型,快速连结型(M12 x 1)
◆ ELECTRICAL RATING
|
5A |
125 or 250V AC |
|
3A |
30V DC |
|
0.4A |
125V DC |
◆ CHARACTERISTICS
|
Operating speed |
0.1mm ～0.5m/sec, M4-4104(4114)→1mm～1m/s |
|
Operating temperature |
-10° ～ + 70℃(without freezing) |
|
Humidity |
95% RH Max |
|
Operating frequency |
Mechanically: 120 operations/min. Electrically: 30 operations/min. |
|
Contact resistance |
300m Ω max.(initial) (with 3m cable) |
|
Insulation resistance |
100M Ω min. ( 500V DC) |
|
Dielectric strength |
between non-continuous terminals: 1000 V AC 50/60 Hz 1 minute. between each terminal and non-current-carrying metal part and between each terminal ground: 1500V AC 50/60 Hz 1 minute |
|
Vibration |
Malfunction durability: 10 ～ 50Hz ﹔1.5mm double amplitude |
|
Shock |
Mechanical durability:1000m/sec2(approx. 100G) Mechanical durability: 300m/sec2(approx. 30 G) |
|
Service life |
Mechanically: 2,000,000 operations min.(standard) 500,000 operations min. Electrically: 200,000 operations min. (1.5A,110VAC) MAX |
|
Protection Degree |
IEC: IP67 |
|
|
|
◆ CABLE CODE: CABLE TYPE
VCTF Cable (0.75mm2×4c)
SJTO Cable (UL approved) (18WG×4c)
◆ If you want to order something special specification, please call me 886-6-2701207~8 or e-mail to contact us.
