ME-限位开关
ME-8122
RMB 251.43

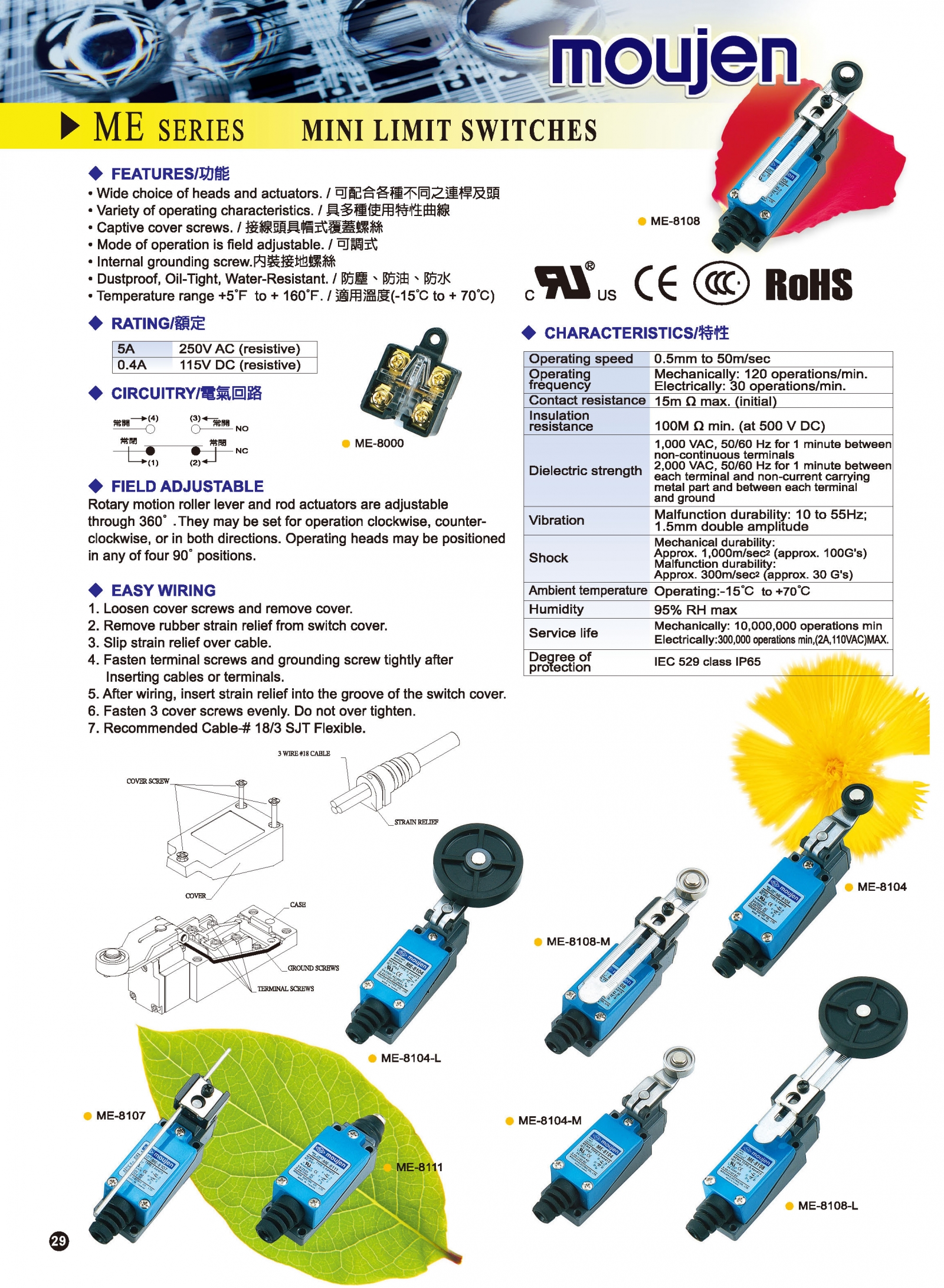

- 功能
- 可配合各种不同支连杆及头
- 具多种使用特性曲线
- 接线头具帽式覆盖螺丝
- 可调式
- 内装接地螺丝.
- 防尘、防油、防水.
- 适用温度+5℉ to +160℉.
- 额定
|
5A |
250V AC(resistive) |
|
0.4a |
115V DC(resistive) |
- 特性
|
操作速度 |
0.5mm to 50m/sec |
|
操作频度 |
Mechanically: 120 operations/min. Electrically: 30 operations/min. |
|
接触电阻 |
15m Ω max. (initial) |
|
绝缘电阻 |
100M Ω min.(at 500V DC) |
|
耐电压 |
1000 V AC,50/60 Hz for 1 minute between non-continuous terminals 2000 VAC, 50/60 Hz for 1 minute between each terminal and non-current-carrying metal part and between each terminal and ground |
|
振动 |
Malfunction durability: 10 to 55Hz ﹔ 1.5mm double amplitude |
|
冲击 |
Mechanical durability:Approx.1000m/sec2(approx. 100G’s) Mechanical durability:Approx. 300m/sec2(approx. 30 G’s) |
|
操作温度 |
Operating:-15℃ to + 70℃ |
|
湿度 |
95% RH max |
|
使用寿命 |
Mechanically: 10,000,000 operations min Electrically: 300,000 operations min,(2.5A,110V AC) MAX. |
|
保护等级 |
IEC 529 class IP65 |

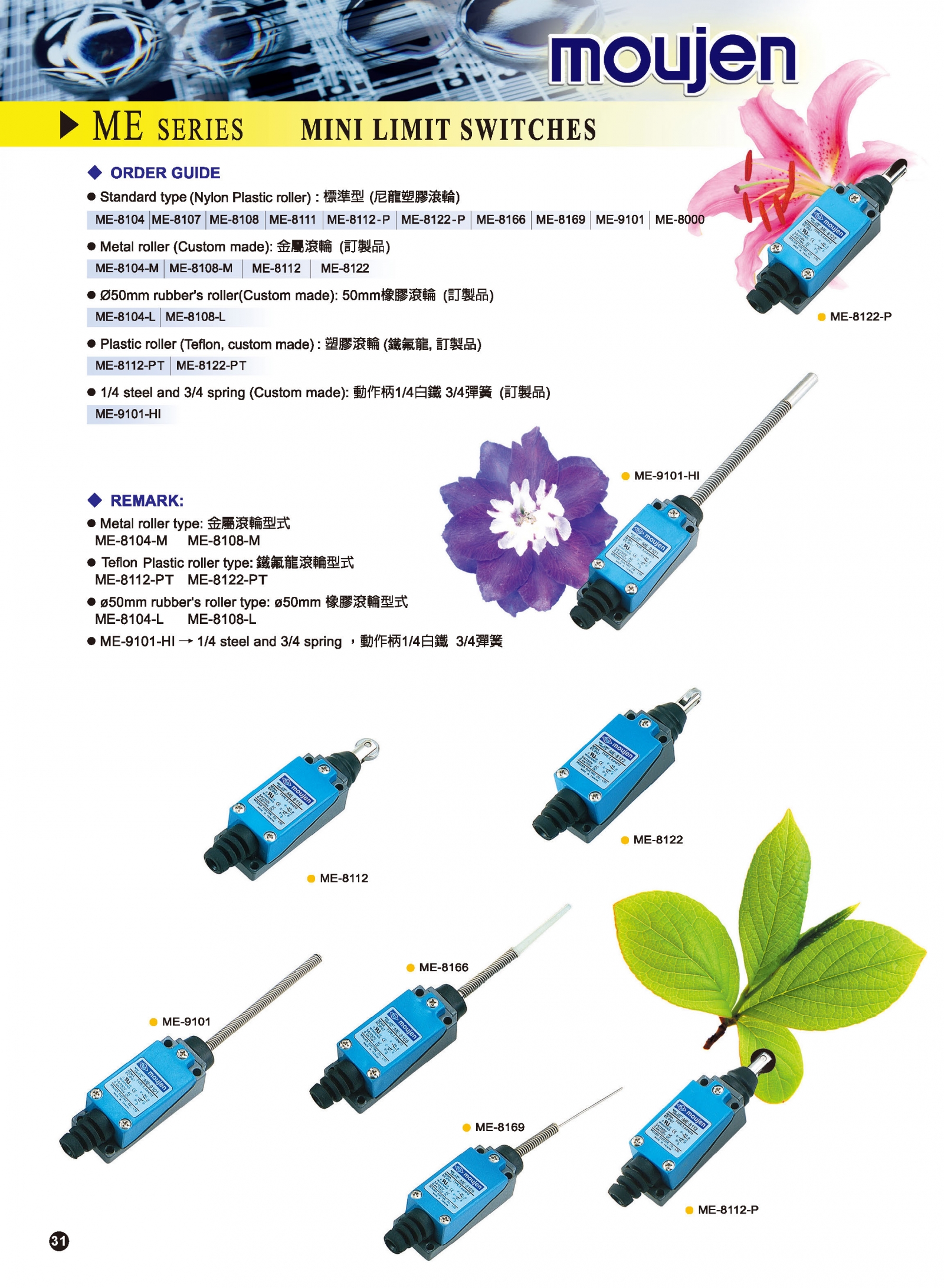

- 购买指南
- 标准型(尼龙塑料滚轮):
|
ME-8104 |
ME-8107 |
ME-8108 |
ME-81111 |
ME-8112-P |
ME-8122-P |
ME-8166 |
ME-8169 |
ME-9101 |
ME-8000 |
- 金属滚轮 (订制品):
|
ME-8104-M |
ME-8108-M |
ME-8112 |
ME-8122 |
- φ50mm 橡胶滚轮(订制品):
|
ME-8104-L |
Me-8108-L |
4. 塑料滚轮 (铁氟龙, 订制品):
|
ME-8112-PT |
ME-8122-PT |
5. 动作柄1/4白铁3/4弹簧 (订制品):
|
ME-9101-HI |
- 若欲订购特殊型号,请加QQ1589247795与我连络询价或e-mail:3505842271@qq.com
